Batterie-alternde Maschine

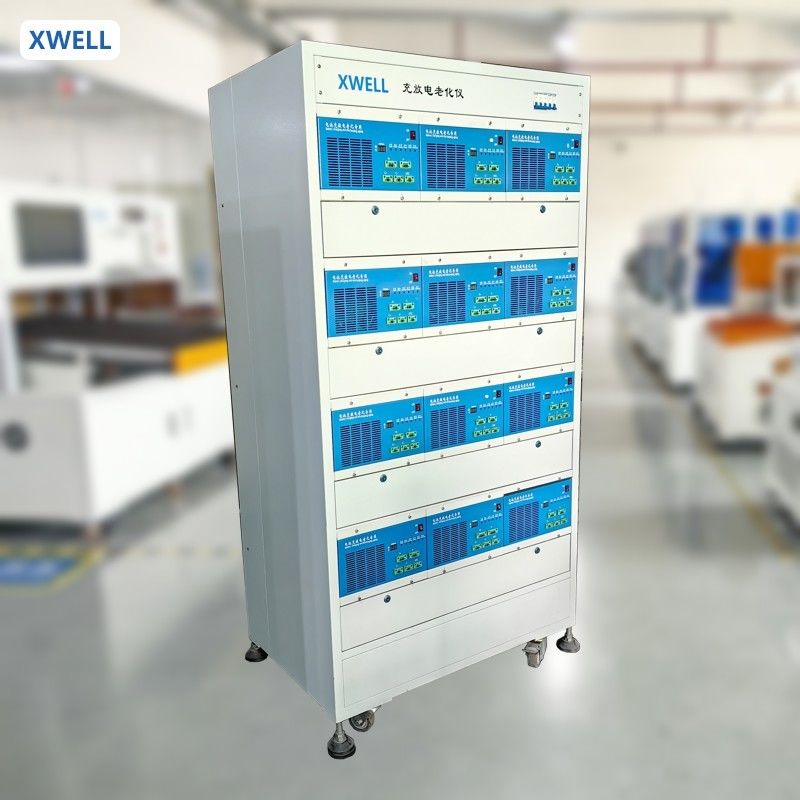

30V 10A 20A Battery Pack Charging and Discharging Machine Battery Pack Aging Machine

Alle Kategorien

Batterie-Satz-Produktions-Maschine

Lithium-Batterie-Punktschweissen-Maschine

Batterie-Zellsortierende Maschine

Batterie-Zelle, die Maschine haftet

30V 10A 20A Battery Pack Charging and Discharging Machine Battery Pack Aging Machine

Markenbezeichnung:	XWELL
Modellnummer:	BCDS70-05-10
Mindestbestellmenge:	1 STÜCK
Preis:	USD 2000/pcs
Verpackungsdetails:	Holzkiste
Zahlungsbedingungen:	T/T, Western Union, L/C

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

Kundendienst:

Bereitgestellt

Typ:

Halbautomatisch

Stromversorgung:

AC220V 50Hz

Ladegenauigkeit:

± 0,2% des Messwerts + 0,2% des Messbereichs

Entladungs-Strecke:

50-10000mA

Auslassgenauigkeit:

± 0,2% des Messwerts + 0,2% des Messbereichs

Konstante Spannung Abschaltstrom:

Minimales 50MA

Ausflussleistung:

≤700W

Inspektions-Zeit:

Echtzeit-Sammlung<2S

Herkunftsort:

China

Versorgungsmaterial-Fähigkeit:

100 Stück pro Monat

Hervorheben:

30V 20A battery aging machine

10A battery pack charging machine

battery pack discharging machine with warranty

Produktbeschreibung

30V 10A 20A Battery Pack Charging and Discharging Machine Battery Pack Aging Machine

The basic performance of the tester

1. Charging and discharging functions

It has the functions of constant current and voltage charging and constant current discharging, charging and discharging batteries and recording the capacity of batteries.

2. Charge-discharge interface

It fully meets the requirements of charging and discharging ports and charging and discharging ports of battery packages, namely, two wires (P + P-) and three wires (P + P - C-). At the same time, the electric tool battery (CH+P+P-) which can aging positive plate charging protection and negative plate discharging protection can be used.

3. Check Voltage Protection

By charging and discharging the batteries, it can be detected whether the charging protection and discharging protection of the batteries play a role.

mainly used for circle life testing and quality control of li-ion battery, lead-acid battery, Ni-Cd battery, NiMH battery and so on in production line or in lab.
Support battery circle life testing, capacity testing, charging characteristic testing, discharging characteristic testing, charg retention capability testing, charge and discharge efficiency testing, over charge or over discharge rate affordability testing.

Product Specification

Technical Parameter
Input Power Supply	Measuring Range	7-70V
	Accuracy	±(0.2% of reading +0.2% of range)
Current	Charging Range	50-5000mA
	Charging Accuracy	±(0.2% of reading +0.2% of range)
	Discharge Range	50-10000mA
	Discharge Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant Voltage Cut-off Current	Minimum 50mA
Capacity	Accuracy	±1%
Power	Discharge Power	≤700W
Time	Inspection Time	Real-time Collection<2S
	Timing Range	0-999h/step
Data Recording Interval	≥5S
Middle Machine Version	1:1 series
Number of Passages Per Cabinet	12 channels, four rows and three column
Charge	Charging Mode	Constant Current and Constant Voltage Charging
Charge	Cut-off condition	Voltage, Current, Relative Time, Overcharge Protection
Discharge	Discharge mode	Constant current discharge
	Cut-off condition	Voltage, Relative Time and Over-discharge Protection
Loop	Cyclic measurement range	1-999 times
	Single cycle step number	100
Voltage and Current Detection Sampling	Four-wire sampling
Data Base	Using SQL database to manage test data
Upper computer communication mode	Based on TCP/IP Protocol/Serial Port
Data Output Mode	EXCEL/TXT/Chart
Communication Interface	Mesh port
Chassis dimensions	300x450x170mm
Cabinet size	900x600x1900mm
Spatial Dimension of Discharge Battery	900x600x130mm
