5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester

Markenbezeichnung:	XWELL
Modellnummer:	XW-64
Mindestbestellmenge:	1Stk
Preis:	USD 7900/pcs
Verpackungsdetails:	HOLZKISTE
Zahlungsbedingungen:	T/T, Western Union, L/C

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

Anpassung:

Verfügbar

Zellen:

Zellen mit Prismen

Spannung und Strom:

5V/10A; 5V/20A; 5V/30A

Wärmeableitung:

Um die Luft auf natürliche Weise zu betreten und die Luft nach oben auszustoßen

Gesamte Energieeinsparung:

mehr als 70%

Spannungsmessbereich:

0-5V, Auflösung 1MV

Batteriespannungsbereich:

Ladung 0-4,5 V: Entladung 4,5-2 V

Spannungsgenauigkeit:

±(1‰ Messwert +1‰ voll)

Steuermodus:

Arbeiten an Computeranschlussgeräten, FCL-Steuerung

Versorgungsmaterial-Fähigkeit:

100 Stück pro Monat

Hervorheben:

5V30A lithium ion cell tester

high current battery capacity tester

prismatic cell grading machine

Produktbeschreibung

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester

Professional battery testing equipment:

Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.

*Each channel can be started and stopped at a single point, and the response speed is fast.
*The operation is simple, convenient and intuitive
*Modular design, easy to maintain.
*The digital current and voltage automatic calibration function
*Using network connection and SQL database
*The hardware technology is advanced, stable and durable.

Advantage Feature

1.Each battery test channel has an independent voltage and current loop design, which is stable and impact-free. It can realize functions such as start, stop, pause, continue and protection for a single battery channel.

2.The charge and discharge current accuracy and voltage accuracy of each channel are automatically calibrated through software.

3.The equipment accuracy is 0.05%, ensuring high stability of measurement and operation.

4.The test channel software and hardware protection has complete battery protection functions: over-voltage, under-voltage, over-current, under-current, over-capacity protection, power-off protection, data breakpoint recovery, reverse battery connection hardware protection, etc.

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

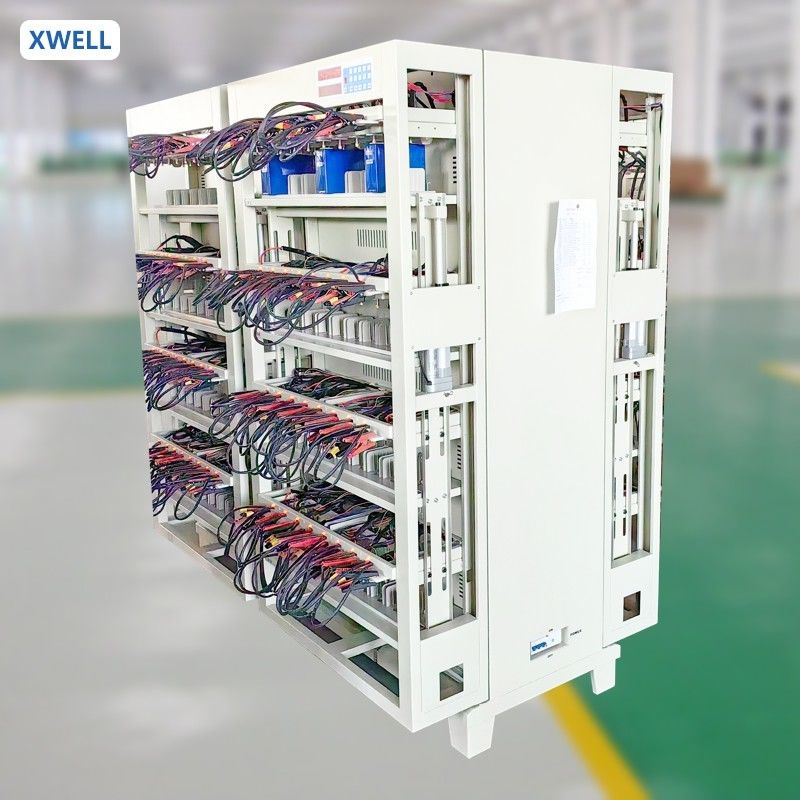

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 0

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 1

XWELL can provide different fixtures for different types of cells

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 2

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 3
