Batterie-Satz-Schweißgerät

Double Side Spot Welding Resistance Spot Welding Machine

Alle Kategorien

Batterie-Satz-Produktions-Maschine

Lithium-Batterie-Punktschweissen-Maschine

Batterie-Zellsortierende Maschine

Batterie-Zelle, die Maschine haftet

Kontakt

Mr. Sammy Qin

sammyqin@outlook.com

+8618620492985

+8618620492985

Kontaktieren Sie uns jetzt

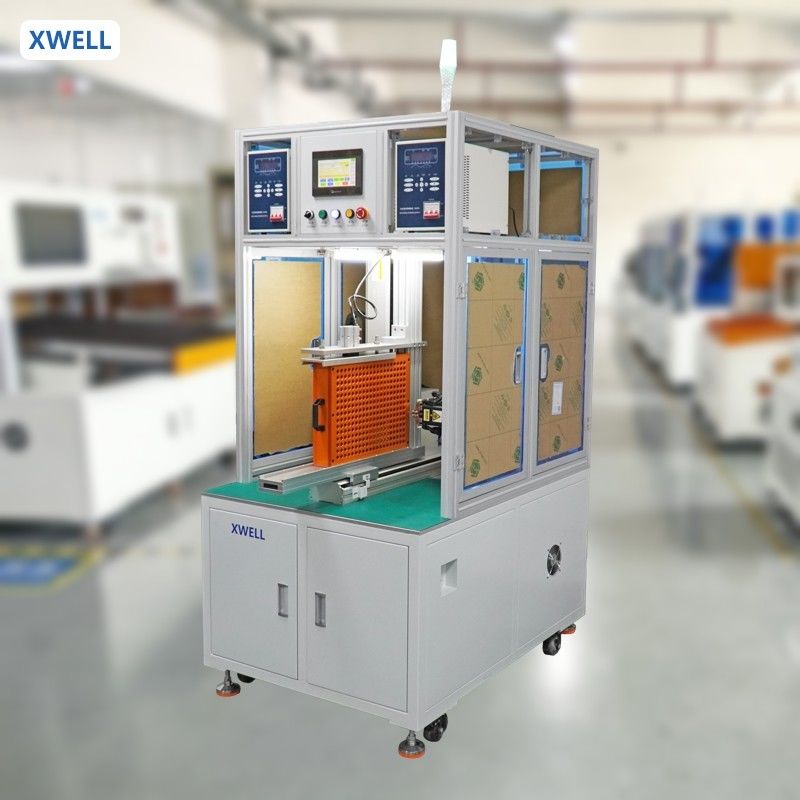

Double Side Spot Welding Resistance Spot Welding Machine

Markenbezeichnung:	XWELL
Modellnummer:	MD-ADW
Mindestbestellmenge:	1Stk
Preis:	USD 11000 - 15000 / pcs
Verpackungsdetails:	HOLZKISTE
Zahlungsbedingungen:	T/T, Western Union, L/C

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

Typ:

Automatisch

Schweißernummer:

Stromquelle:

5000A / 8000A / 10000A optional

Effizienz:

3800 Stück/h

Ausrüstungsschlag:

500*350 (mm) etwa 760 18650 Zellen

Elektrodenmaterial:

Aluminiumoxid

Antriebsformular:

Reiner Motorantrieb

Maximale Tragfähigkeit:

200-400 Stück (Standard 18650 Lithium-Batterie)

Betriebssystem:

eingebettetes System + Bildschirm für Mensch und Maschine

Übertragungsmodus:

Schritt + Gurt + importierte präzise lineare Führungsschiene (optional Servo + Schraube)

Versorgungsmaterial-Fähigkeit:

100 Stück pro Monat

Hervorheben:

double side spot welding machine

resistance spot welding machine for battery packs

battery pack spot welder with warranty

Produktbeschreibung

Double Side Spot Welding Resistance Spot Welding Machine

Feature:
1) Most Durable Spot Welding Machine
2) Most Energy Saving CNC Welding Machine
3) Most easy operative Spot Welding Machine. Our welding machines are all well bested in good condition before delivery. Once the clients receive our machines, just need connect air pressure and electronic wire, cooling water, it is ok to run.
4) Fastest Welding Machine. Capacity is important to factory. To use less labour, and more productive, our welding machines can reach your goal.
5)Our company has excellent development and design and production team, more than 70% of the products for non-standard custom, welcome to sample custom equipment.

Brand: SCN
Product origin: Guangdong,China
Delivery time: 5 days
Supply capacity: 20 sets per month

Product Advantages

1. Manual programming, CAD map, easy to learn, production line workers can be fully competent.
2. Production counting function, set the production quantity, and automatically stop when the output is completed.
3. Welding needle compensation function, set the number of welding needles, and automatically remind the welding needle maintenance when the number is reached
4. Aluminum alloy frame, imported acrylic guard plate, beautiful and elegant, strong sense of technology, visual operation to improve production safety factor.

Product Specification

Product Name: lithium battery double-sided rotation 6-axis automatic spot welding machine
Brand name: XWELL	Input voltage: 220V±10% 50Hz
Model number: MD-ADW	Welding voltage: 220V/380V(Optional)
Power source: Optional	Efficiency:3800pcs/h
Thickness of welding nickel sheet: 0.08mm-0.25mm	Drive form: Pure motor drive
Scope of application: Various cylindrical lithium batteries	Machining accuracy: 0.01ms
Welding method: Plane double needle welding	Welding speed:0.7-0.8ms/piece
Cooling method of welding needle:circulating water cooling
Number of file groups that can be saved: unlimited
Overall dimensions: 1100L900W1130Hmm
Shaft stroke: Y-axis:500mm,Z-axis:350mm (customizable)

Product Application

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
