Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Produktdetails:
| Herkunftsort: | China |
| Markenname: | XWELL |
| Zertifizierung: | CE |
| Modellnummer: | MD-ADW |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1Stk |
|---|---|
| Preis: | USD 11000 - 15000 / pcs |
| Verpackung Informationen: | Holzkiste |
| Lieferzeit: | 10-15 Tage |
| Zahlungsbedingungen: | T/T, Western Union, l/c |
| Versorgungsmaterial-Fähigkeit: | 100 Prozent pro Monat |
|
Detailinformationen |
|||
| Farbe: | Optional | Kopfnummer: | 2 PCs |
|---|---|---|---|
| Betriebssystem: | Eingebettetes System | Benutzeroberfläche: | Touch-Screen |
| Stromquelle: | 5000A / 8000A / 10000A optional | Effizienz: | 3800 Stück/h |
| Ausrüstungsschlag: | 500*350 (mm) etwa 760 18650 Zellen | Maximale Belastungskapazität: | 200-400 Stück (Standard 18650 Lithium-Batterie) |
| Betriebssystem: | eingebettetes System + Bildschirm für Mensch und Maschine | Übertragungsmodus: | Schritt + Gurt + importierte präzise lineare Führungsschiene (optional Servo + Schraube) |
| Hervorheben: | automatic numerical control spot welder,single-side rotary head spot welding machine,18650 21700 battery pack spot welder |
||
Produkt-Beschreibung

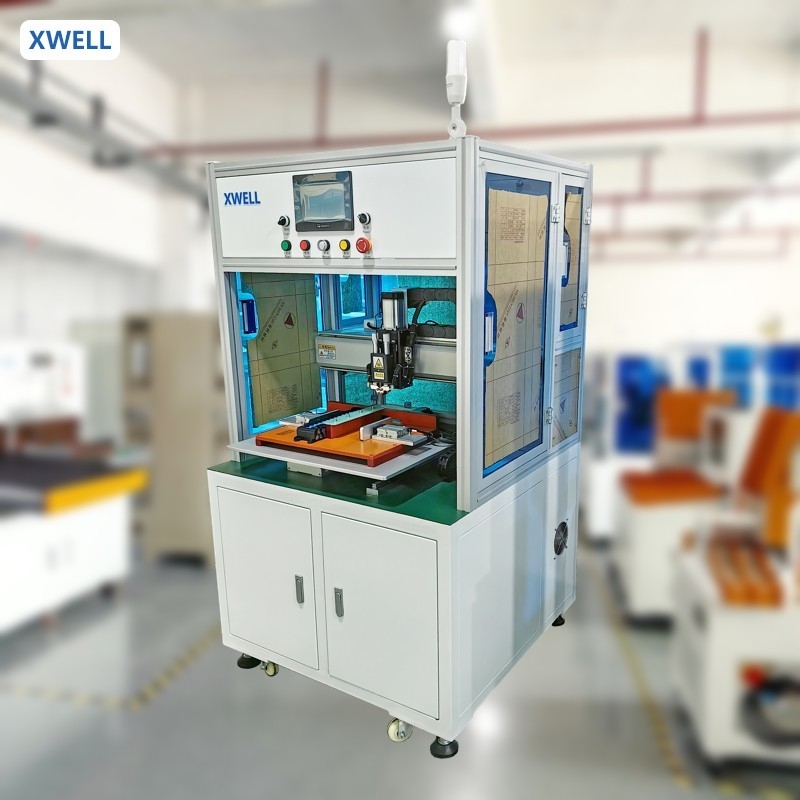

Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Description
Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.
Feature:
This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
