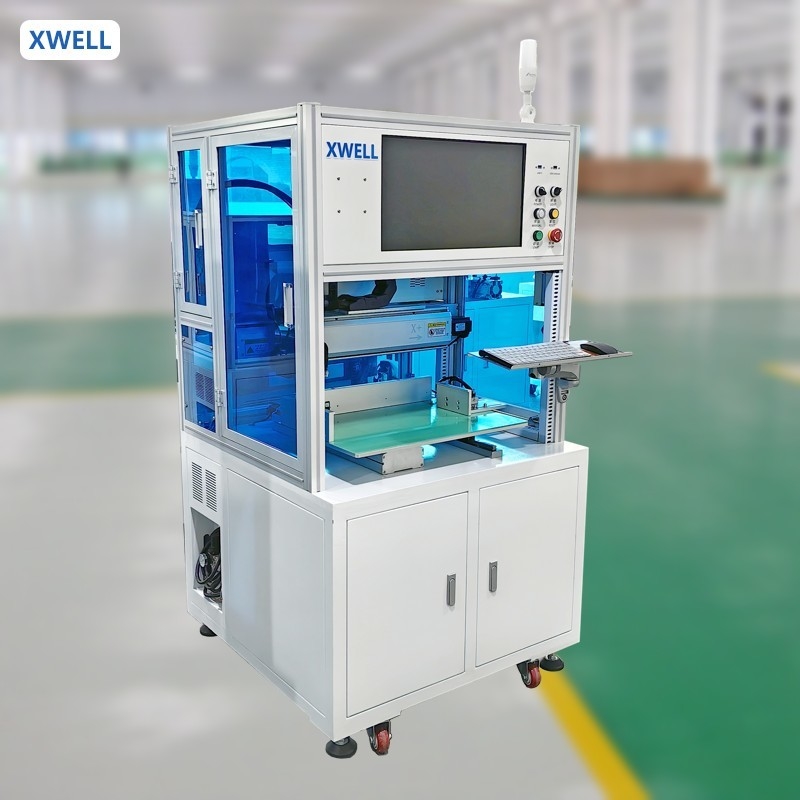

Cylindrical Battery Single Side Spot Welding Machine For E-Vehicles/EV Bike Battery Pack Assembly
Produktdetails:
| Herkunftsort: | China |
| Markenname: | XWELL |
| Zertifizierung: | CE |
| Modellnummer: | MD-ASW |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1Stk |
|---|---|
| Preis: | USD 6000 - 12000 / pcs |
| Verpackung Informationen: | Holzkiste |
| Lieferzeit: | 10-15 Tage |
| Zahlungsbedingungen: | T/T, Western Union, l/c |
| Versorgungsmaterial-Fähigkeit: | 100 Prozent pro Monat |
|
Detailinformationen |
|||
| Garantie: | Einjährige Garantie mit lebenslangem Support | Typ: | Automatisch |
|---|---|---|---|
| Stromversorgung für die X- und Y-Achse: | 400 mm * 400 mm | Höchstgeschwindigkeit des Motorantriebs: | 300 bis 1000 mm/s |
| Elektrischer Strom: | Gleichstrom | Schweißmodus: | Wechselrichter DC |
| Punktschweißgeschwindigkeit: | 0.35 s/spot; 2800 Stück/Stunde | Maximale Lagermasse der Y-Achse: | 35 kg |
| Maximalbelastung der elektrischen Kerne: | X-Richtung: 26; Y-Richtung: 26 | Leistung: | 4000 W |
| Hervorheben: | cylindrical battery spot welding machine,EV bike battery pack welder,lithium battery spot welder |
||
Produkt-Beschreibung
Cylindrical Battery Single Side Spot Welding Machine For E-Vehicles/EV Bike Battery Pack Assembly
Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is a comprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the know ledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Application:
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc. Please feel free to contact us for more details about EV Car Battery Assembly.
FEATURE
1) Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2) Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3) Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4) Easy to change from low current to high current, suitable for precision welding.
5) The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6) The welding current will rise with the power on time to ensure the welding effect.
Product Specification
| Model | MD-ASW |
| X-axis travel | 400mm |
| Y-axis travel | 400mm |
| Spot welding speed | 0.5s / point; 1800pcs / h |
| Maximum speed of motor drive | 300-1000 mm/s |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Power | <1500w |
| Air supply | 0.2 ~ 0.6Mpa |
| Weight | 200KG |
| Dimensions | About 900mm*900mm*1750mm |
Product Application
Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Battery spot welder details
