Epoxy Fiberglass Insulation Sheet 3240, 0.3-80mm Thickness, 170℃ Heat Resistant
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | XWELL |
| Zertifizierung: | CE |
| Modellnummer: | Epoxidfaserplatte |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1pcs |
|---|---|
| Preis: | USD $0.1~$1000 |
| Verpackung Informationen: | Karton |
| Lieferzeit: | 5-7 Tage |
| Zahlungsbedingungen: | T/T, Western Union, L/C, D/A, D/P. |
| Versorgungsmaterial-Fähigkeit: | 10000 PCs pro Monat |
|
Detailinformationen |
|||
| Modellnummer: | 3240 | Typ: | Isolierfolie |
|---|---|---|---|
| Material: | Epoxidfaserplatte | Dichte: | 1,9 - 2,0 g/cm3 |
| Dicke: | 0,3 mm - 80 mm | Glasübergang: | 170℃ |
| Genehmigung: | 4,8 MHz | Zugfestigkeit: | 340MPA |
| Hervorheben: | epoxy fiberglass insulation sheet 3240,heat resistant insulation sheet 170℃,battery insulation sheet 0.3-80mm |
||
Produkt-Beschreibung

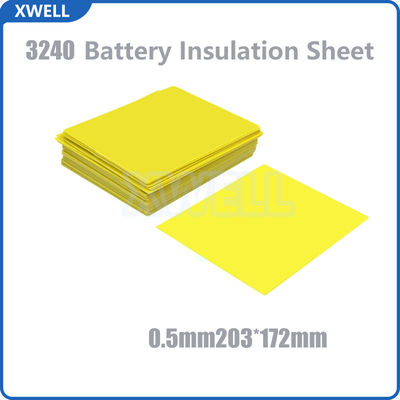

Epoxy Fiberglass Plate Products Battery Insulation Sheet
Premium Insulation Material for High Voltage Applications
Our Heat-Resistant Epoxy Glass Cloth Fiber Board (3240 Board) is a high-performance laminated insulation material designed for demanding industrial and electrical applications. Manufactured using advanced lamination technology, it combines electrical-grade alkali-free glass fiber cloth with premium epoxy phenolic resin for superior performance.
Key Features
- Exceptional Heat Resistance: Meets Class B standards (continuous 130°C), maintaining stable mechanical and electrical properties in high temperatures while resisting thermal aging and deformation.
- Superior Insulation Performance: Excellent dielectric strength (rated 600V) with low dielectric loss, providing reliable insulation for electrical components in high-voltage scenarios.
- Robust Mechanical Strength: High tensile strength and impact resistance with dimensional stability (resists warping/cracking). Smooth surface enables precise machining (cutting, drilling) with clean edges.
Technical Specifications
| Product Name | Epoxy glass fiber cloth board |
|---|---|
| Product Brand | FORY |
| Product Model | 3240 |
| Product Process | CNC engraving machine, cutting machine |
| Product Thickness | 0.3 ~ 100(mm) |
| Product Specifications | 1020*2020 (can be customized to customer requirements) |
Applications

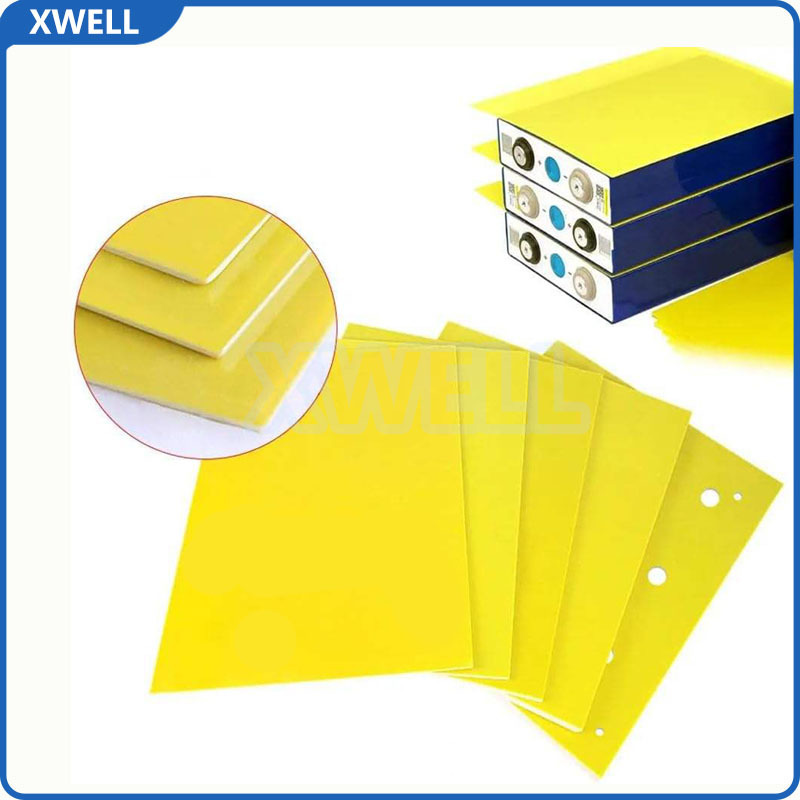

- Battery Packs: High-reliability insulation layers for lithium-ion and NiMH battery packs, isolating cells from electrical interference and mechanical friction while maintaining stable performance under temperature fluctuations.
- Electrical Field: Key component in switchgear, transformer oil barriers, and high/low-voltage electrical cabinets, ensuring long-term insulation stability and preventing electrical leakage in complex power supply environments.
- Tooling & Molds Industry: Ideal for PCB testing fixtures, ICT fixtures, and mechanical molds, offering high dimensional stability and precise machinability for strict precision requirements.
Why Choose Our Products?
- Flexible product specifications with thousands of options to meet diverse requirements
- OEM and ODM designs and labels available
- Low minimum order quantities with customizable samples
- Short production cycles and fast delivery times
- Multiple convenient payment methods available
Möchten Sie mehr über dieses Produkt erfahren?
